SHAPENIX by PMT Innovation Co., Ltd. is the pride of high-precision 3D full body scanner of Korea.

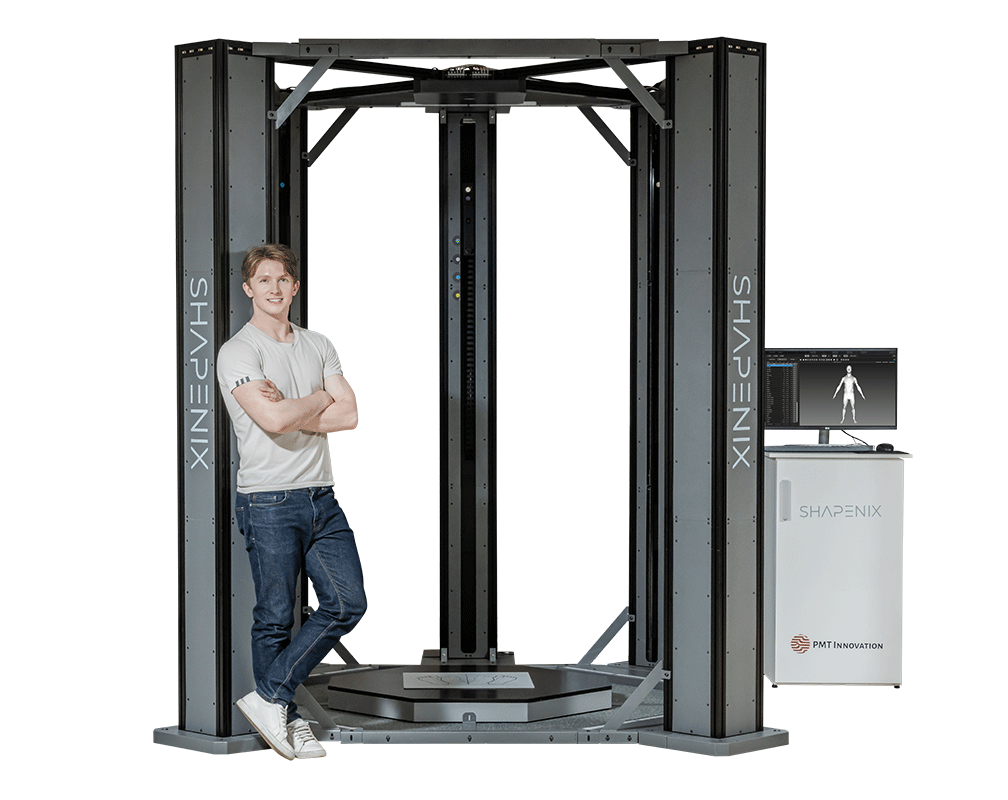

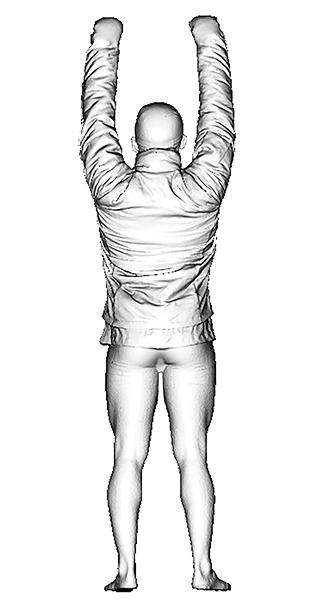

SHAPENIX is a high-precision 3D human body scanner developed by PMT Innovation with its own technology.
It uses an infrared line scan method to obtain high-precision 3D data, and is designed to meet ISO 20685, the international standard for human body measurement using 3D scanning.

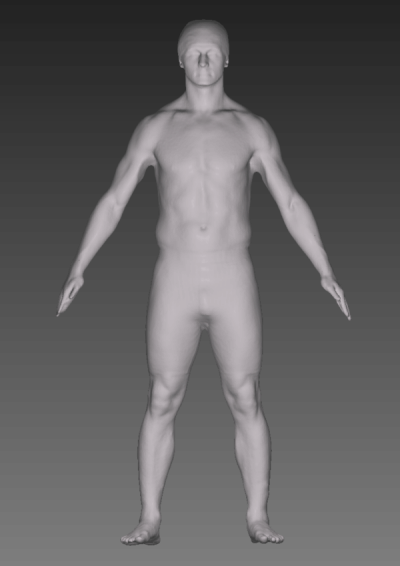

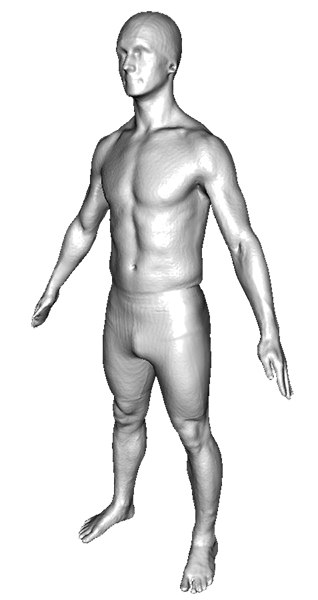

It also comes with its own developed software that automatically measures the dimensions of various human body parts.
Using high-precision cameras that move up and down, the scan is completed in less than 10 seconds and can obtain over 150 body measurements.
SHAPENIX by PMT Innovation Co., Ltd. is the pride of high-precision 3D full body scanner of Korea.
SHAPENIX is a high-precision 3D human body scanner developed by PMT Innovation with its own technology.
It uses an infrared line scan method to obtain high-precision 3D data, and is designed to meet ISO 20685, the international standard for human body measurement using 3D scanning.
It also comes with its own developed software that automatically measures the dimensions of various human body parts.
Using high-precision cameras that move up and down, the scan is completed in less than 10 seconds and can obtain over 150 body measurements.
Main Uses and Product Features
Main Uses
- Establishment of national human body standard data by gender and age
- Customized clothing production and clothing-related research
- Human body measurement for analysis of obesity, posture, etc.
- Standing posture measurement based on international human body measurement standards (ISO 20685), etc.
Product Features
- High-precision image acquisition using optical multi-angle measurement using infrared and camera
- Color texture acquisition using color camera
- Adjust scan area to suit user's purpose

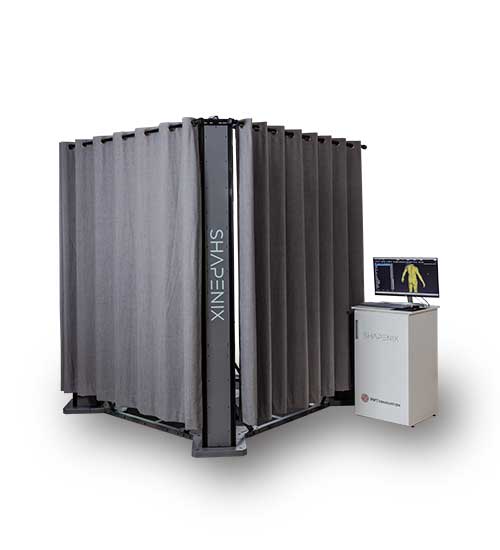

SHAPENIX Series
The SHAPENIX series consists of the basic model SHAPENIX-404 and the SHAPENIX-405,
which features an additional front-mounted camera tower.
For measuring human body dimensions, both models use the same measurement software.

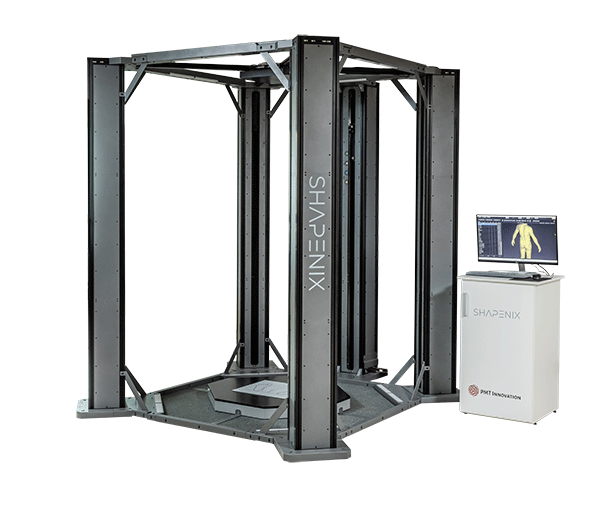

SHAPENIX-404

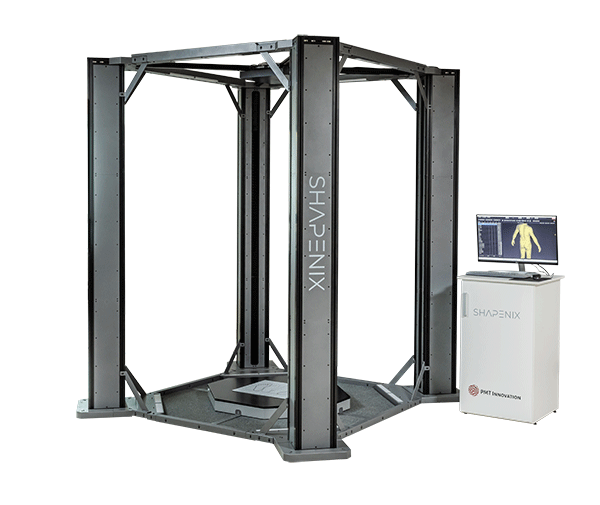

SHAPENIX-405
- Number of camera towers: 4
- Standard standing pose scan
- Fast 3D data generation
- Scanning a large number of people in a short time
- For measuring and analyzing obesity, posture, etc.
- Number of camera towers: 5

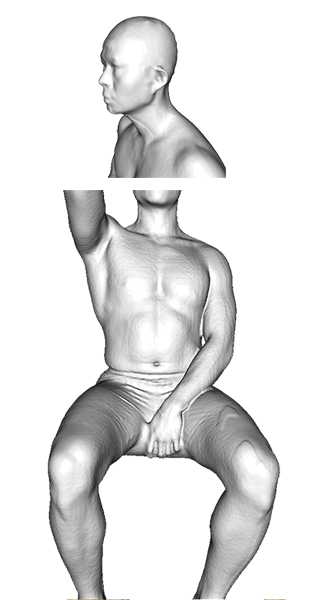

- Scan various poses
- Takes a little more time to generate 3D data
- High 3D detail
If you want to scan in a sitting posture or want to minimize missing areas, we recommend SHAPENIX-405.
If you want to scan mostly in a standard standing posture, we recommend SHAPENIX-404.
SHAPENIX-405
- Number of camera towers: 5
- Scan various poses
- Takes a little more time to generate 3D data
- High 3D detail
If you want to scan in a sitting posture or want to minimize missing areas, we recommend SHAPENIX-405.
If you want to scan mostly in a standard standing posture, we recommend SHAPENIX-404.
Software Features and Functions
Features
- Optimized for human body measurement based on 3D Rendering Engine and measurement S/W developed with our own technology
- Automatic measurement items are mainly 3D measurement reference point, height, width, thickness, length, circumference, angle, etc., and provide measurement values for about 150 items
- Additional measurement information such as cross-sectional area, body surface area, volume, and partial volume can be provided depending on the customer's purpose of use
Main Programs

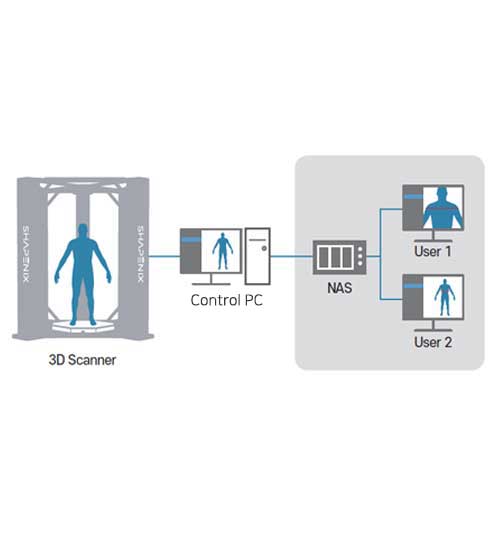

- Member Management and 3D Scanning Program
- Human Body Automatic Measurement Program
- Network User Program
S/W Main Functions

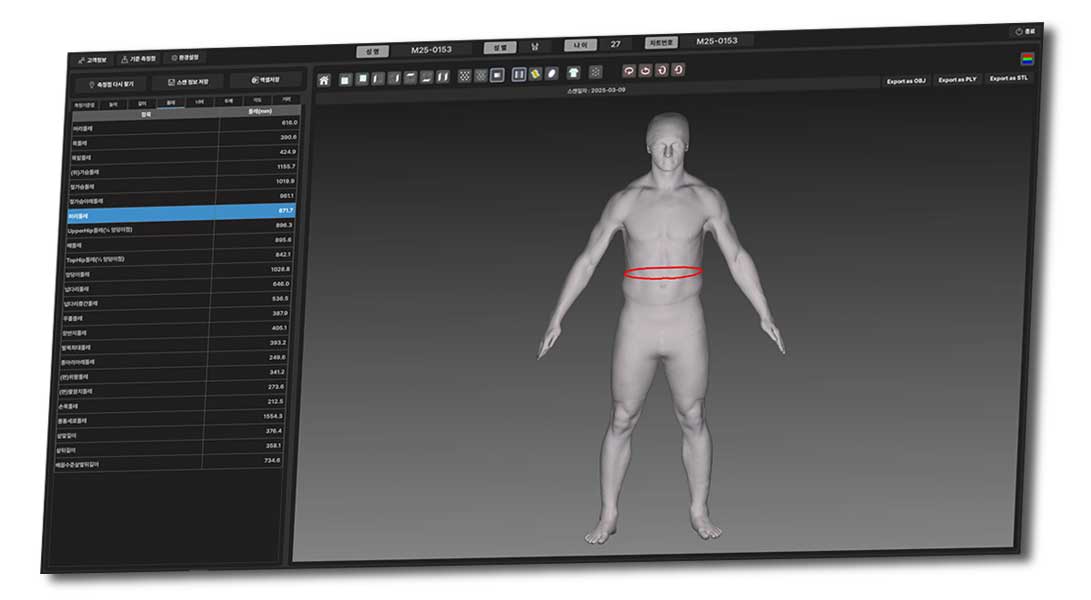

- Automatic measurement point location can be changed and saved
- 3D model color, brightness, luminosity adjustment
- Export measurement data to Excel
- 3D modeling file download

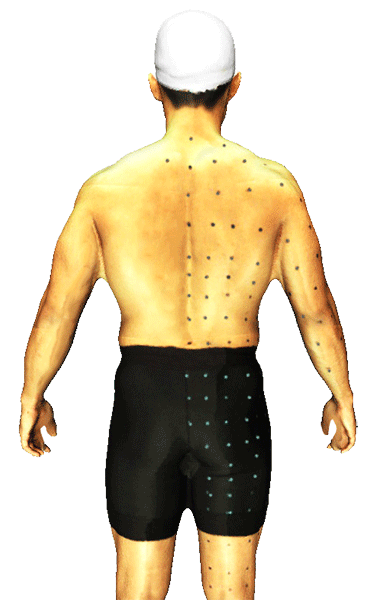

Measurement points
Thickness
Circumference
Height
Width
Angle
Length
Color Texture
Optional Items
Detachable curtains for sun protection and cabinet

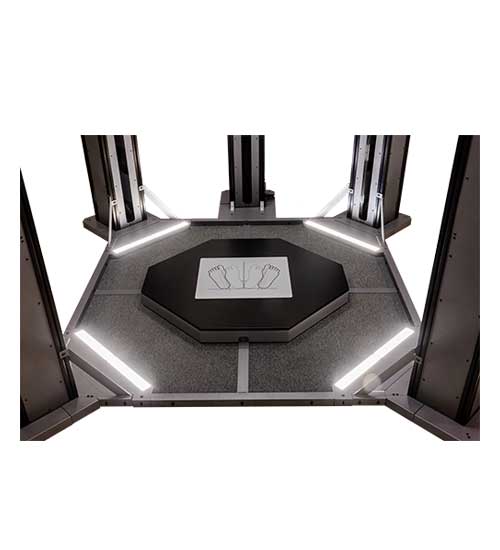

Dedicated carpet and automatic LED lighting
NAS and user programs
Dedicated carpet and automatic LED lighting
NAS and user programs
Specifications and Components
Main Specifications
Main Components
Item | Specification | ||
SHAPENIX-404 | SHAPENIX-405 | ||
Basic Performance | Scan time | 8.5 sec. | 10 sec. |
Scan area | 120(W) x 96(D) x 202(H) cm | ||
Accuracy | Within 1mm of waist circumference | ||
3D Resolution | < 2.5mm | ||
3D Color | 3D Color View provided | ||
H/W | No. of towers | 4 | 5 |
No. of cameras | 12 | 15 | |
Size | 234(W) x 234(L) x 256(H) cm | 234(W) x 262(L) x 256(H) cm | |
Weight | 380kg | 420kg | |
Power consumption | 2.05kW(Max) | 2.3kW(Max) | |
Power source | AC 210~230V (50~60Hz) | ||
S/W | Scan S/W | 3D scanner control and scanning S/W | |
Measurement | Human body automatic measurement S/W | ||
User S/W | S/W for network users | ||
Installation space | Minimum space | 320(W) x 320(L) x 270(H) cm | 320(W) x 350(L) x 270(H) cm |
Item | Comments | |
Basic Items | 3D Full Body Scanner | Scanner H/W |
Control Box | Control Box for Scanner Control | |
Switching HUB(10Gbps) 16Port | Switching Hub for high-speed data transmission | |
PC and monitor | Scan PC and monitor(1 each) | |
Footboard | Scanner-specific footboard | |
OS, scan S/W, measurement S/W | Built-in to the control PC | |
Optional Items | Lighting for Color Texture | |
Dedicated curtain | ||
Dedicated carpet | ||
Dedicated cabinet | For PC, monitor and NAS | |
NAS and network user S/W | Select based on number of users |
* Product specifications and S/W may be changed for functional improvement without prior notice.
